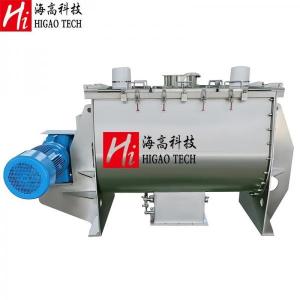

Vortex Ribbon Horizontal Mixing Machine Powders Horizontal Ribbon Mixer Iso

Name: Vortex Ribbon Horizontal Mixing Machine Powders Horizontal Ribbon Mixer Iso
Brand: Higao Tech
Price: 1 USD

China Vortex Ribbon Horizontal Mixing Machine Powders Horizontal Ribbon Mixer Iso wholesale

Place of Origin : China

Brand Name : Higao Tech

Certification : ISO CE

item no. : RM Series ribbon mixer

Payment : T/T 30% deposit and 70% before shipment

product origin : made in china

Color : Shining Polish or Matte Shinning Polish

shipping port : Shanghai Port

Lead Time : 30 Days

Contact Now

horizontal ribbon mixer

Higao Tech offer high quality horizontal ribbon mixer machine used to mix many kinds of powders and granules at a low price in china.

1. Introduction of Ribbon Mixer:
Horizontal ribbon mixer machine has a single blending shaft with double helical ribbons. ribbon mixer machine is widely used in mixing dry powder, granules, particles, pellets, low viscous paste materials with spraying liquid or oil during the mixing process.

2. Working Principle:
The vortex outer ribbon combined with rotating direction drives materials from two sides to the centre; at the same time inner ribbon drives material from centre to outsides. This convective activity shorts the mixing time and betters the mixing effect.

3. Multiple blending structures:
We have another blending structure called ribbon paddle type mixer.
We designed this structure by combining customers requirement and did many times of tests, and finally it works.

4. Liquid and oil spray system for ribbon mixer:
Liquid spray system can be equipped to mix some liquid with powdery materials in the mixer. Customers can spray oil, water, adhesive, liquid additives, etc.

5. Crushing and dispersing functions-high speed choppers:
High speed choppers can be installed on the ribbon mixer to help the materials disperse better during mixing process.
There are two types of chopper blades. Tulip shaped chopper (single) and X-mass tree type chopper (Multiple) are available.

6. Heating and cooling jacket:
Ribbon Mixer with heating jacket or cooling jacket can be equipped to heat or cool the materials by setting a certain temperature to make the materials keep some property or some special reaction.

7. Discharging method:
Controlled by manual, electric and pneumatic. But now pneumatic flap valve is becoming a popular discharging way.

8. Processing method of spare parts:
Spare parts of Ribbon Mixer are processed by laser cutting machine. It assures the accuracy and quality. Also the appearance is very smooth and beautiful.

9. Welding and soldering details:
Our welding workers are very professional, some of them have more than 10 years working experience.The welding tracks are rather fluent and smooth. The welding standard is based on Germany industrial standard.

10. Steel grade of Horizontal Ribbon Mixer Machine:
You can choose stainless steel 304(SUS304), stainless steel 316L(SUS316L), stainless steel 316 Titanium(SUS316TI), carbon steel covered with paint, special coating on the surface of the barrel, such as Teflon(PTFE) coating, ceramic coating, porcelain enamel(or called enamel glass), etc.
